1. Overview
Fiber Linker’s 3G-SDI Fiber Optic Extender offers the digital transmission of fully uncompressed SDI (270Mbps),HD-SDI (1.485Gbps) , 3G-SDI(2.97Gbps)by single fiber overbroadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission. It is broadcasting quality, could compatible with ASI, TS stream.
2. Features
Our 3G-SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution
3. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
4. Ordering Information

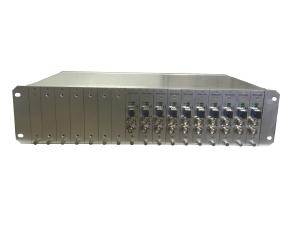

FL4010MP : 15-ch 3G-SDI, compatible with ASI, TS, 15 fibers, single mode, FC, 20KM, 2U rack mount.
5. Specifications
| 3G-SDI TX | 3G-SDI RX |
| channels | 1 to 15 channels input | Channels | 1 to 15 channels output |
| Signal standard | SMPTE 424M/425M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -2.97Gb/s) | Signal level | 800mV nominal |
| Reflection loss | >15DB | Rise/drop time | 200ps nominal |
| equalization | 1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable>100m@2970Mbps | Reflection loss | > 15dB |
| connector | 75Ω BNC | Overshoot | 10% amplitude |
| Jitter: < 0.3UI |
| Optic | Others |
| Channels | 15 | Transmission distance | 20KM |
| Type | single mode (multimode optional) | Operating temperature | -45°C~+50°C |
| Wavelength | CWDM | Power | 1A@12VDC |
| Reflection loss | > 15dB | Average time trouble-free | >100000 hours |
| Connector | FC/PC (ST/PC optional) | Case | 2U rack mount |
